Delta Suite Door Handles on Latchplate Polished Chrome
Back to the (retro) future! If you like something different to the traditional styles available at the moment, then our Delta Suite handles have you covered.
Featuring a rectangular and cylindrical mixed handle and unique top to bottom fixing holes instead of the usual 4 fixing holes. Supplied with bolt through fixings and the handles are sprung.
STANDARDS & CERTIFICATIONS

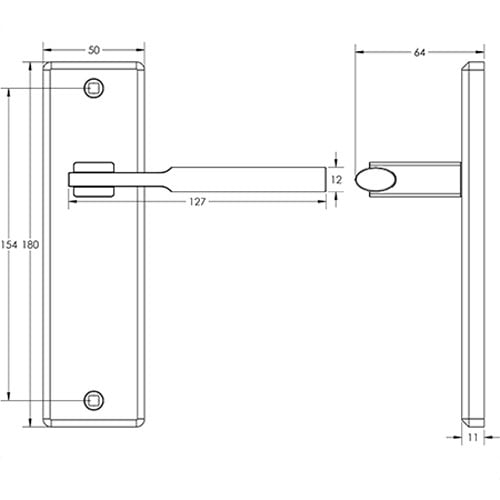

TECHNICAL DRAWING
| PVD Finish | No |
|---|---|
| Backplate Projection | 11mm |
| Backplate Dimension | 154mm x 50mm |
| Avaliable Finishes | 3 |
| Sprung | Yes |
| Handle Length | 127mm |
| Overall Projection | 64mm |
| Fixings Included | Yes |
| Overall Size | 180 x 142mm |
| Residential/Commerical | Residential |
| Internal/External | Internal |
| Range | Jedo |
| Material | Zinc |
| Finish | Polished Chrome |
| Backplate | Latch |
