Back to the (retro) future! If you like something different to the traditional styles available at the moment, then our Delta Suite handles have you covered.
Featuring a rectangular and cylindrical mixed handle and unique top to bottom fixing holes instead of the usual 4 fixing holes. Supplied with bolt through fixings and the handles are sprung.
STANDARDS & CERTIFICATIONS

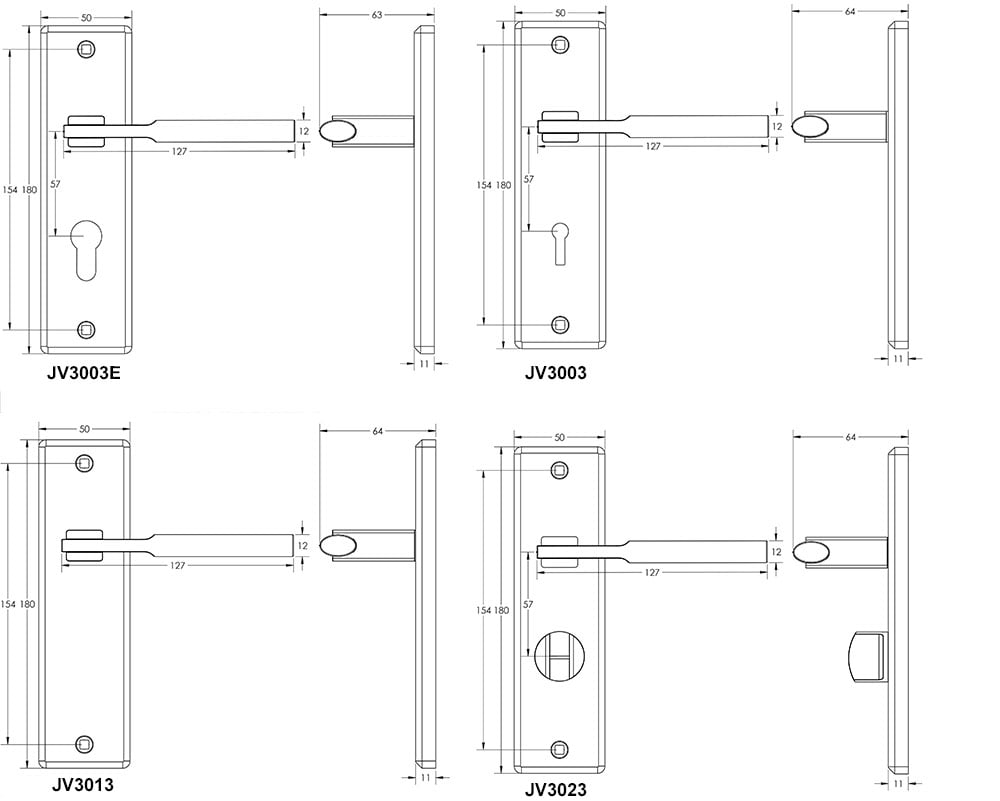

TECHNICAL DRAWING
| Backplate Projection | 11mm |
|---|---|
| Backplate Dimension | 154mm x 50mm |
| Avaliable Finishes | 3 |
| Sprung | Yes |
| Handle Length | 127mm |
| Overall Projection | 64mm |
| Fixings Included | Yes |
| PVD Finish | No |
| Residential/Commerical | Residential |
| Internal/External | Internal |
| Range | Jedo |
| Material | Zinc |
Click on any of the following links to download the file.
