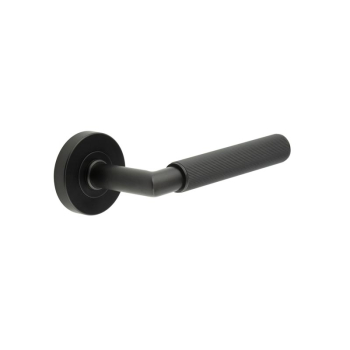

Three One Six Linear Knurled Door Handle Black
The Three One Six Linear Knurled is made from grade 316 stainless steel, this door handle offers exceptional durability and resistance to corrosion, making it ideal for residential and commercial spaces, including high-traffic areas and moisture-prone environments.
KEY FEATURES:
- Material: 316g Stainless Steel
- Rose: Sprung Lever
- Finish: Offered in black & coated with PVD
- Corrosion Resistance: Rated Grade 5
- Fire Resistance: FD30/60
- Suitable Door Thickness: 35-54mm
- Sold as Singles/Pairs: Pairs
- Additional Hardware: Complemented by a range of turns & releases, escutcheons, locks, latches & hinges
- Care Instructions: Maintain the handle's luster by cleaning with warm soapy water and a soft cloth; no harsh chemicals needed.
- Fittings Included: Comes with everything needed for installation, including one spindle size (110mm), grub screws, back-to-back fixings, and an Allen key.
- Use: Designed for internal & external environments for residential & commercial settings
STANDARDS & CERTIFICATIONS
| Fixings Included | Yes |
|---|---|
| Bar Diameter | 20mm |
| Rose Centres | 38mm |
| Projection | 51mm |
| Grip Length | 98mm |
| Avaliable Finishes | 2 |
| Sprung | Yes |
| Handle Length | 130mm |
| Overall Projection | 71mm |
| Rose Projection | 10mm |
| Rose Diameter | 53.50mm |
| PVD Finish | Yes |
| Overall Size | 54 x 157mm |
| Residential/Commerical | Residential/Commercial |
| Internal/External | Internal/External |
| Material Grade | 316g Stainless Steel |
| Sprung Rose | Sprung |
| Range | Three One Six |
| Material | Stainless Steel |
| Finish | Black |
| Corrosion Grade | Grade 5 |
| Fire Rating | FD30/60 |
