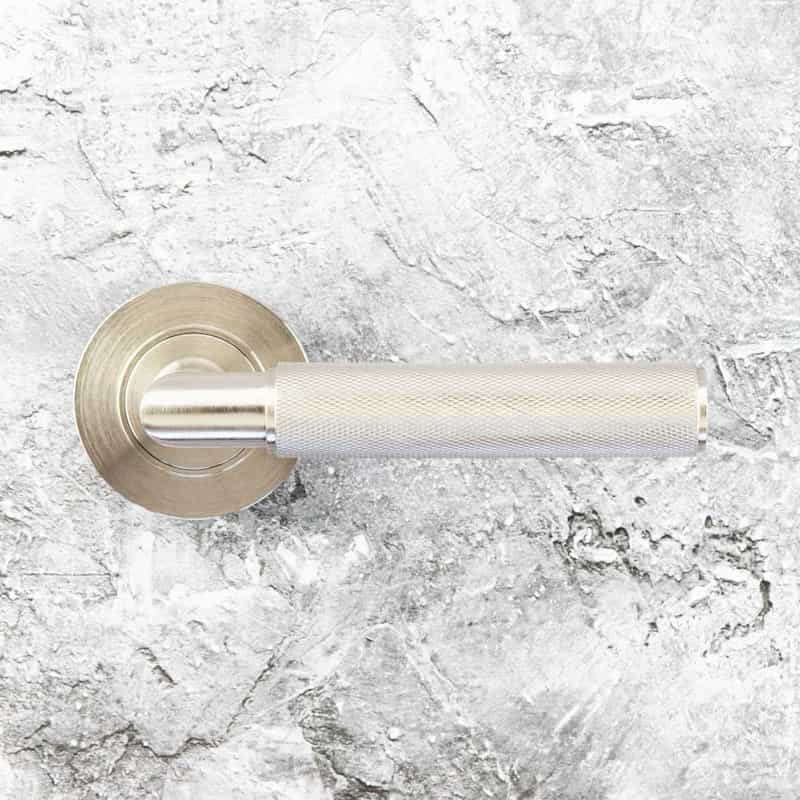

Burlington Piccadilly Knurled Door Handles

Finish
Rose
Please select from the options above.
Buy OnlinePrice Your Project

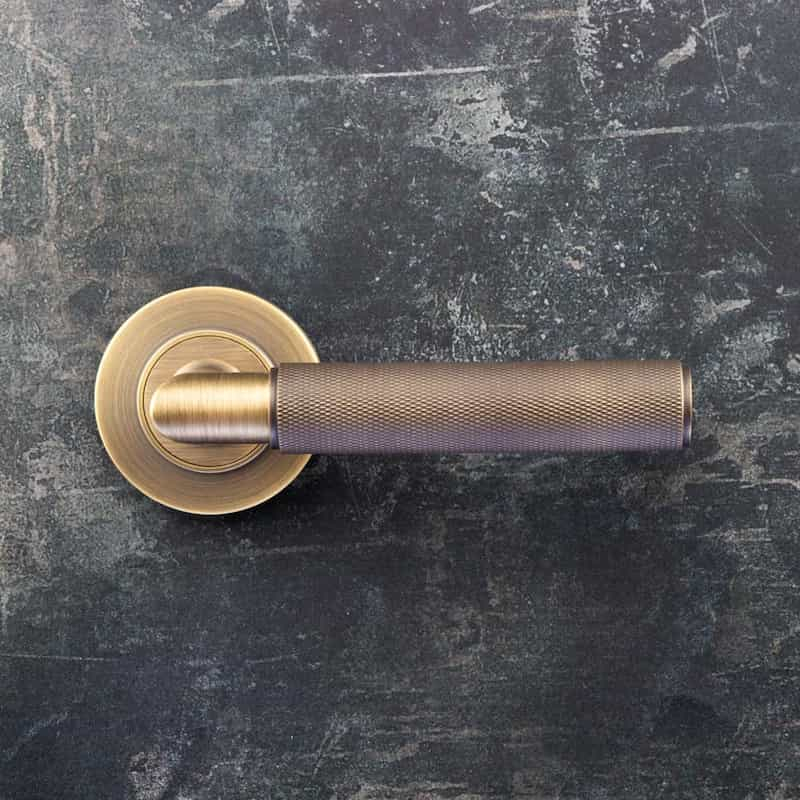

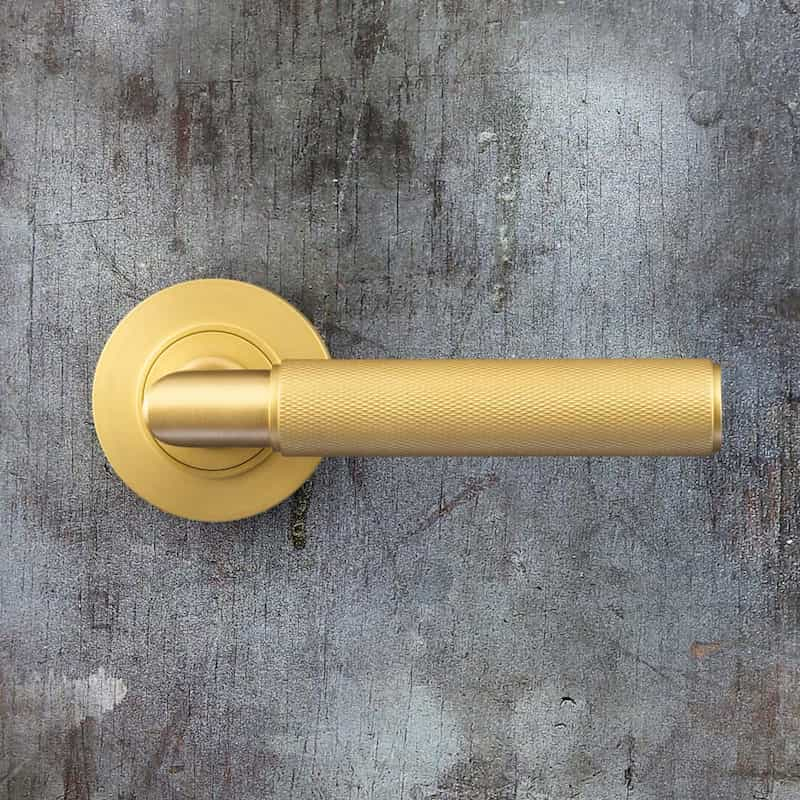

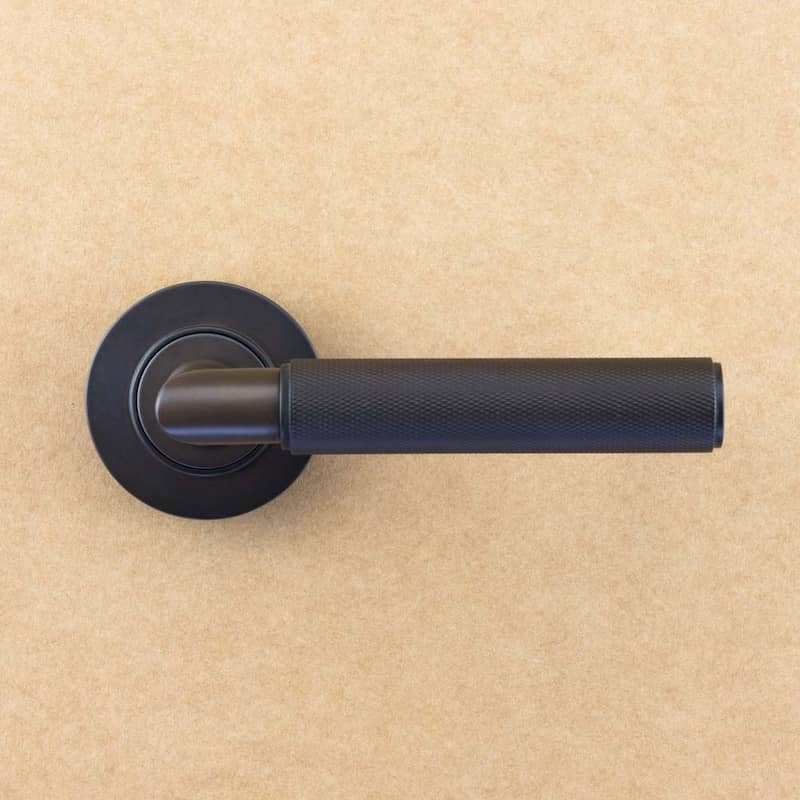

The luxury Piccadilly lever door handle on rose is crafted from solid brass and features a clean contemporary lever handle with sharp modern detailing. This handle is suitable for doors 35-55mm and is recommended for back to back fixing. It is also made from matt lacquered solid brass, making it a durable and stylish choice. Choose from a variety of outer rose options to complete the look. Additional features include 38mm centres, five high-quality finishes, and the ability to customize with 13 different profiles, including backplates.see here

STANDARDS & CERTIFICATIONS

Fire Door 30 60 CertificationMaterial Solid Brass

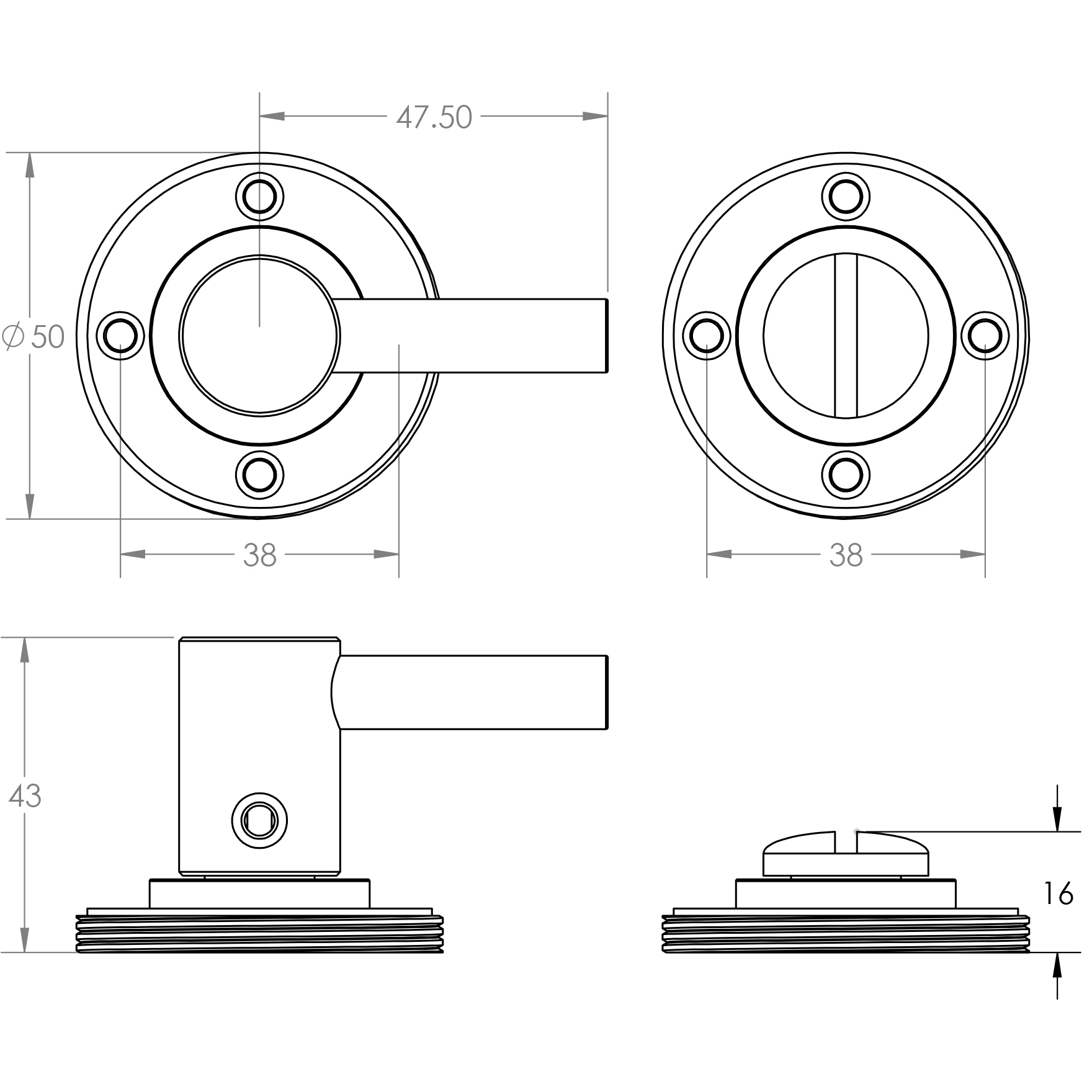

TECHNICAL DRAWING

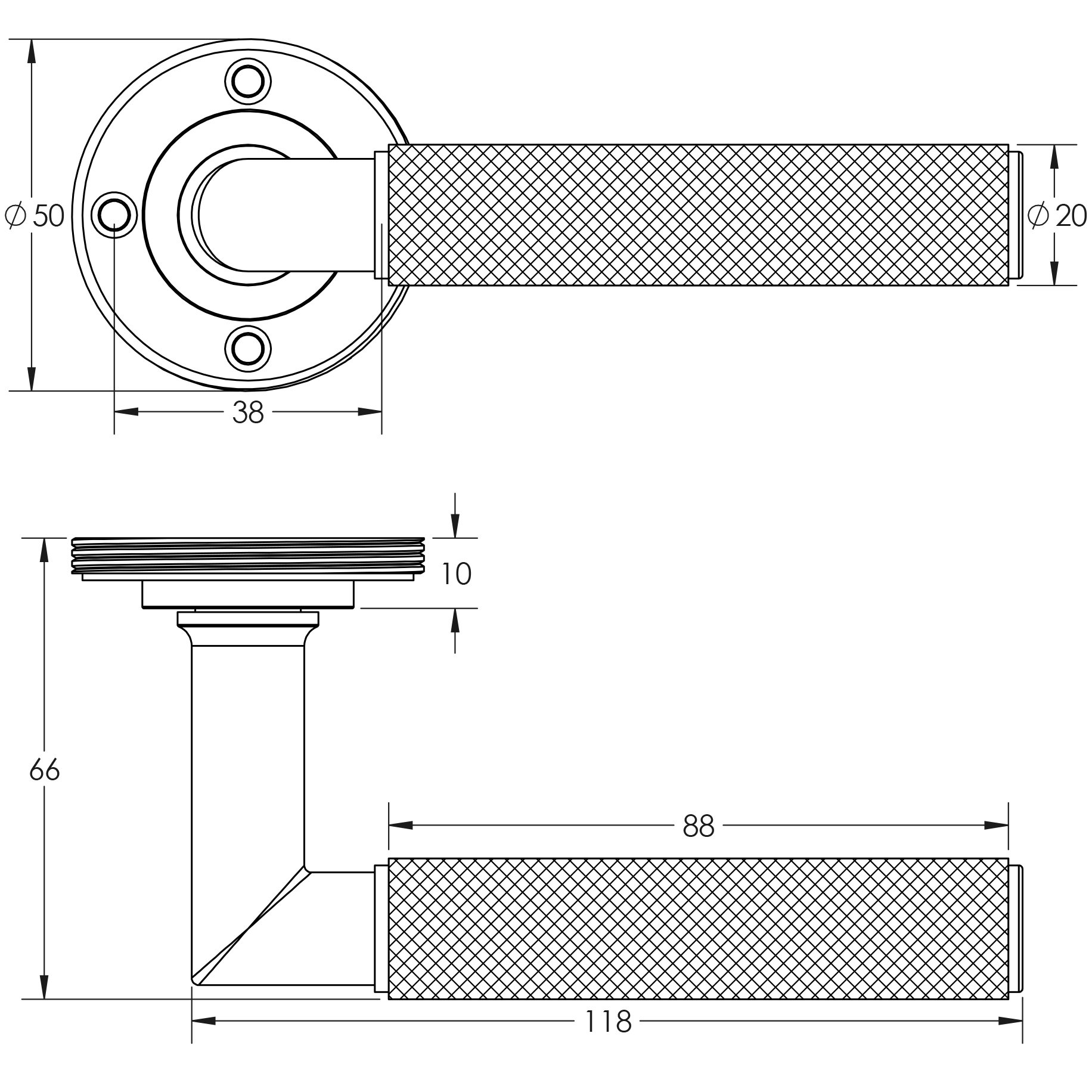

BUR40 Technical Drawing

Fire Rating30/60
MaterialSolid Brass
RangeBurlington
Internal/ExternalInternal
Residential/CommericalResidential/Commercial
PVD FinishNo
Fixings IncludedYes
Rose Diameter50mm
Rose Projection10mm
Overall Projection55.50mm
Handle Length118mm
SprungYes
Avaliable Finishes6
Grip Length88mm
Projection35.5mm
Rose Centres38mm
Bar Diameter20mm
