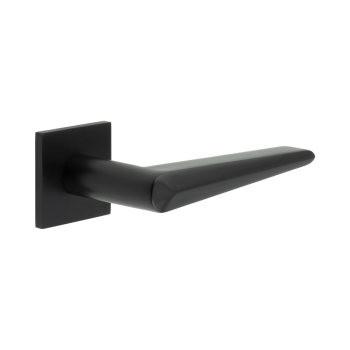

CR-107 Black Sprung Square Rose Door Handle
The CR-107 Lever features a sharply tapered lever with crisp angles and smooth curves, offering a striking modern look. Engineered in solid 316g stainless steel and finished in high-performance PVD, this handle is suited to design-conscious interiors. Designed for residential and commercial settings, sold in pairs with five elegant finish options.
KEY FEATURES
Material: 316g Stainless Steel
Inner Rose: Sprung
Finish: Black (Coated with PVD)
Outer Rose: Square Rose
Suitable Door Thickness: 44 – 54mm
Corrosion Resistance: Rated Grade 4
Fire Resistance: FD30/60
Additional Hardware: Full suite of matching components available, finished to the same high standard for residential and commercial use
Care Instructions: Clean using warm soapy water and a soft cloth only; avoid harsh chemicals
Fittings Included: Supplied with all fixings – 2x 304 M6 x 7mm security grub screws (matching finish), 1x Allen key, 1x 8 x 110mm split spindle
Use: Suitable for internal and external use across both residential and commercial settings
Mechanical Warranty: 25 years
STANDARDS & CERTIFICATIONS
| Rose Diameter | 54x54mm |
|---|---|
| Outer Rose | Square |
| Inner Rose | Sprung |
| Mechanical Warranty | 25 Years |
| BS EN 1906 2012 | Grade 3 |
| Projection | 54mm |
| Avaliable Finishes | 5 |
| Sprung | Sprung |
| Overall Projection | 79mm |
| Rose Projection | 6mm |
| PVD Finish | Yes |
| Overall Size | 140x25x72mm |
| Residential/Commerical | Residential/Commerical |
| Internal/External | Internal/External |
| Material Grade | 316g Stainless Steel |
| Range | CRES |
| Material | Stainless Steel |
| Finish | Black |
| Certifire | N/A |
| Corrosion Grade | Grade 4 |
| CE / UKCA | N/A |
| Fire Rating | FD30/60 |
