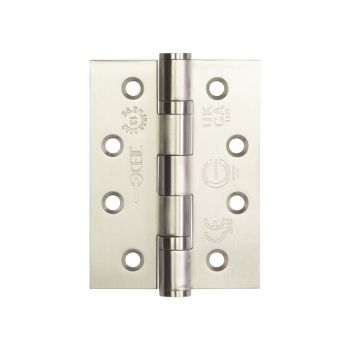

Certifire Stainless Steel Grade 13 Ball Bearing Hinges 102x76x3mm Satin Stainless Steel
A Grade 13 stainless steel ball bearing hinge is a heavy-duty hinge that supports doors up to 120 kg. The ball bearings ensure smooth opening and closing, making it ideal for frequent use in commercial and residential doors, sold in pairs
KEY FEATURES:
Finish: Satin Stainless Steel
Size: 102x76x2mm,
Standards: BS EN 1935:2002
Mechnical Cycles: 200,000
Certification: Certified under UKCA 1121 and CE 2812 standards
Grade 13 Classification: Meets the Grade 13 standard, providing assurance of durability and strength in demanding environments which supports doors up to 120kg with 3 hinges
Fire Resistance: FD30/60 & Certifire Approved
Fittings Included: Comes complete with 16 x wood screws (thread length: 28mm & thread diameter: 5mm)
Usage: Ideal for both commercial and residential settings where reliability and safety are essential.
Carton Qty: 40
DIMENSIONS
Height (H): 102mm
Width (W): 76mm
Knuckle (L): 14.5mm
Thickness (T): 3mm
We strongly recommend requesting a sample before committing to any cutting and drilling.
To maintain compliance with the fire standard for these hinges, it is recommended that you fit these with the relevant intumescent pack (GRA 1 & GRA 1.2)
STANDARDS & CERTIFICATIONS
n.b fire tested when fitted with Intumescent hinge pad.
| Mechanical Warranty | 10 Years |
|---|---|
| PVD Finish | No |
| Overall Size | 102 x 76mm |
| Residential/Commerical | Residential/Commerical |
| Internal/External | Internal |
| Material Grade | 201g Stainless Steel |
| Range | Jedo |
| Carrying Weight | Up to 120kg with 3 hinges |
| Material | Stainless Steel |
| Finish | Satin Stainless Steel |
| Certifire | Yes |
| Corrosion Grade | Grade 4 |
| CE / UKCA | BS EN 1935 |
| Fire Rating | FD30/60 |
| Size | 102x76x3mm |
