Flush Bolts provide a sleek and unobtrusive solution for securing the inactive leaf of double doors, perfect for maintaining a clean aesthetic in modern interiors.
KEY FEATURES:
Concealed Design: Mounted flush with the door edge, these bolts create a streamlined, minimalist appearance that blends seamlessly with the door surface.

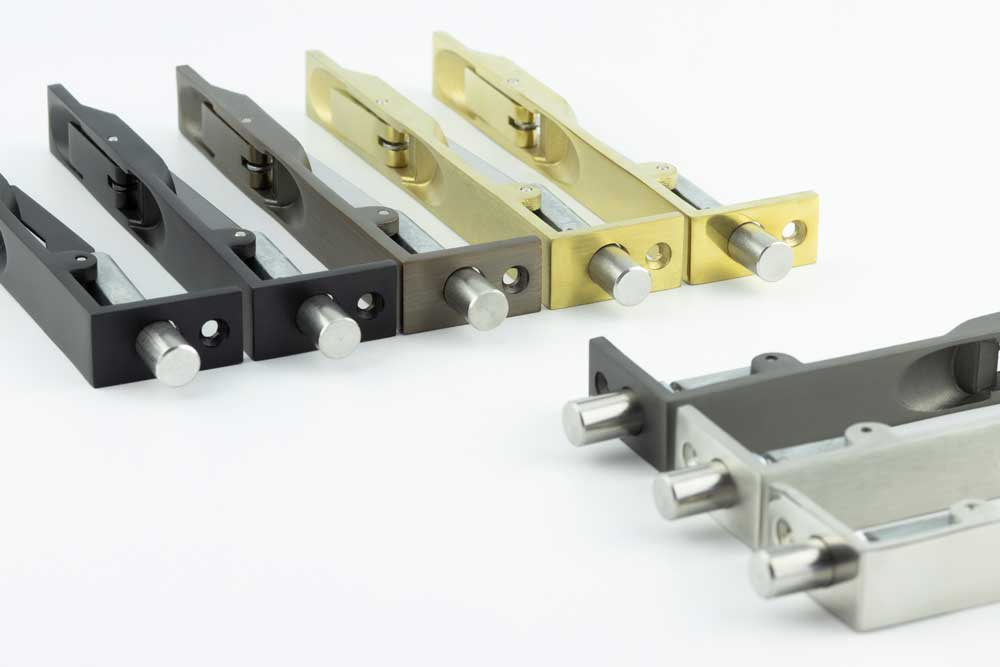

Finish: Antique Brass, Dark Bronze, Black, Brass Finish, Satin Brass, Polished Stainless Steel, Satin Stainless Steel.
Length Options: 150, 203, 305, 457, 609, 914
Fire Resistance: FD30/60
BS EN 12051:1999: Test Cycles 10,000
Corrosion Tested: Grade: 4
Fittings Included: Keep , 4 x Wood Screws.
Use: Suitable for Commercial settings.
Dia. Bolt: 11mm
Bolt Throw: 15mm
Profile Options: Square & Radius profiles.
Flush Bolts: Lever Action
To maintain compliance with the fire standard for these flush bolts, it is recommended that you fit these with the relevant intumescent pack (GRA 7 & GRA 8)
STANDARDS & CERTIFICATIONS
| BS EN 12051:1999 | 10,000 Cycles |
|---|---|
| Fixings Included | Keep, 4 x Wood Screws |
| PVD Finish | No |
| Residential/Commerical | Commercial |
| Internal/External | Internal |
| Material Grade | 304g |
| Range | Stainless Steel |
| Material | Stainless Steel |
| Corrosion Grade | Grade 4 |
| Fire Rating | FD30/60 |
