The Nero T Bar Lever on Plate part of the Nero Range features a meticulously crafted knurled T-bar handle that transitions seamlessly into a sleek, silver-toned end cap. This detail not only enhances the visual appeal but also accentuates the lever's industrial-inspired look, solid in pairs.
Key Features
- Material: 304g Stainless Steel
- Rose: Sprung Lever
- Finish: Black
- Additional Hardware: Complemented by a range of turns & releases, escutcheons, locks, latches & hinges
- Care Instructions: Maintain the handle's luster by cleaning with warm soapy water and a soft cloth; no harsh chemicals needed.
- Fittings Included: Comes with everything needed for installation, including two spindle sizes (100mm and 110mm), grub screws, back-to-back fixings, and an Allen key.
- Use: Suitable for internal applications across both residential and commercial settings.
STANDARDS & CERTIFICATIONS

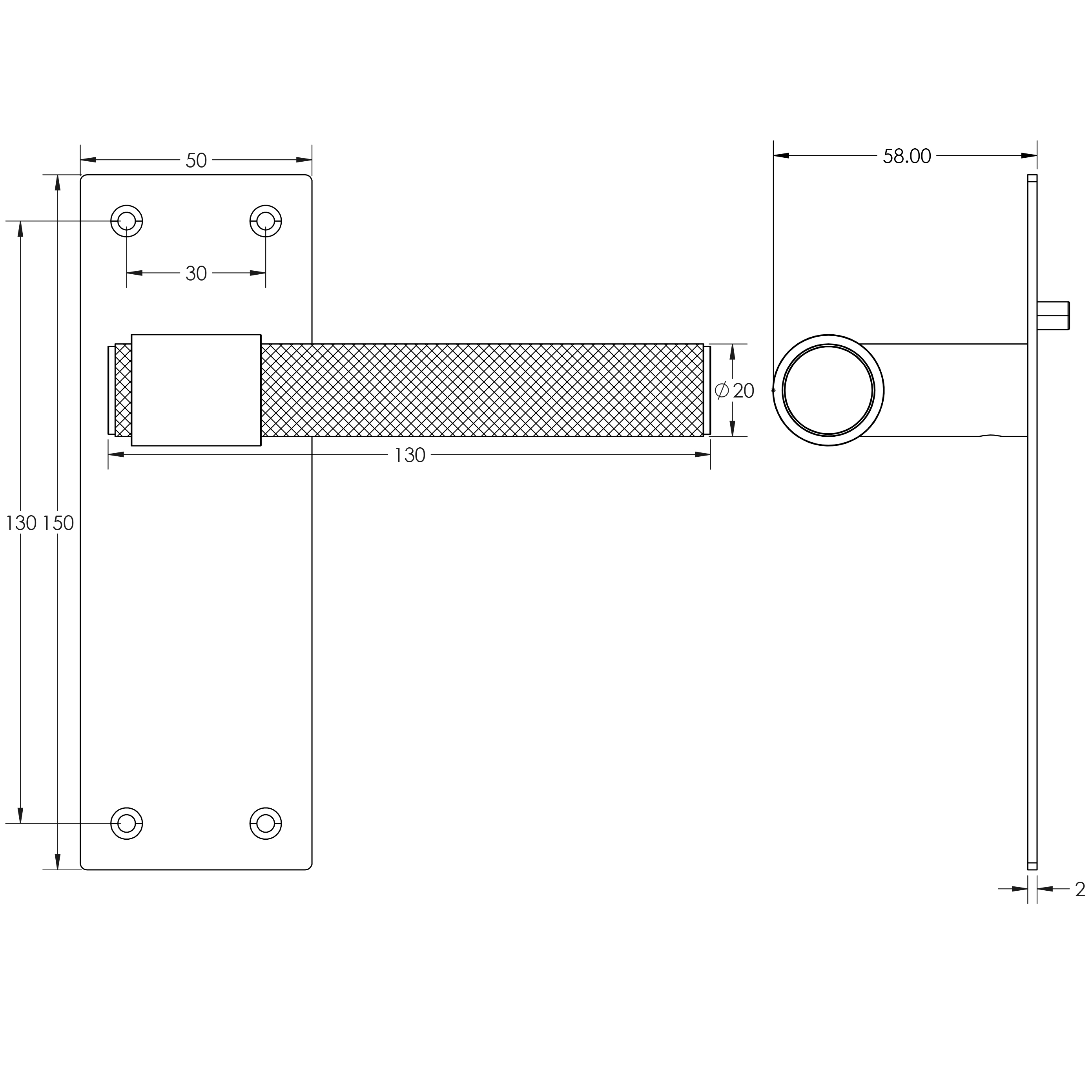

| Bar Diameter | 20mm |
|---|---|
| Backplate Projection | 2mm |
| Backplate Dimension | 150mm x 50mm |
| Handle Length | 130mm |
| Overall Projection | 57mm |
| Residential/Commerical | Residential/Commercial |
| Internal/External | Internal |
| Material Grade | 304 |
| Range | Nero |
| Material | Stainless Steel |
| Finish | Black |
