Jedo Bari Knurled Door Handles

Finish
Please select from the options above.
Buy OnlinePrice Your Project

The Bari Knurled Lever on Rose (JV850) is a stylish and modern door handle with a unique knurled detailing, providing a sturdy and comfortable grip. Made from aluminium, it's available in several finishes, including Matt Black, Antique Brass, Satin Brass, Black Nickel, Polished Chrome, and Satin Chrome. This handle is suitable for internal residential use and includes fire safety certification.


For detailed technical information or spec sheets, please click the corresponding tab above. Explore the entire Jedo range, including various styles and finishes, here.

STANDARDS & CERTIFICATIONS

Fire Door 30 60 Certification
Material Aluminium

TECHNICAL DRAWING

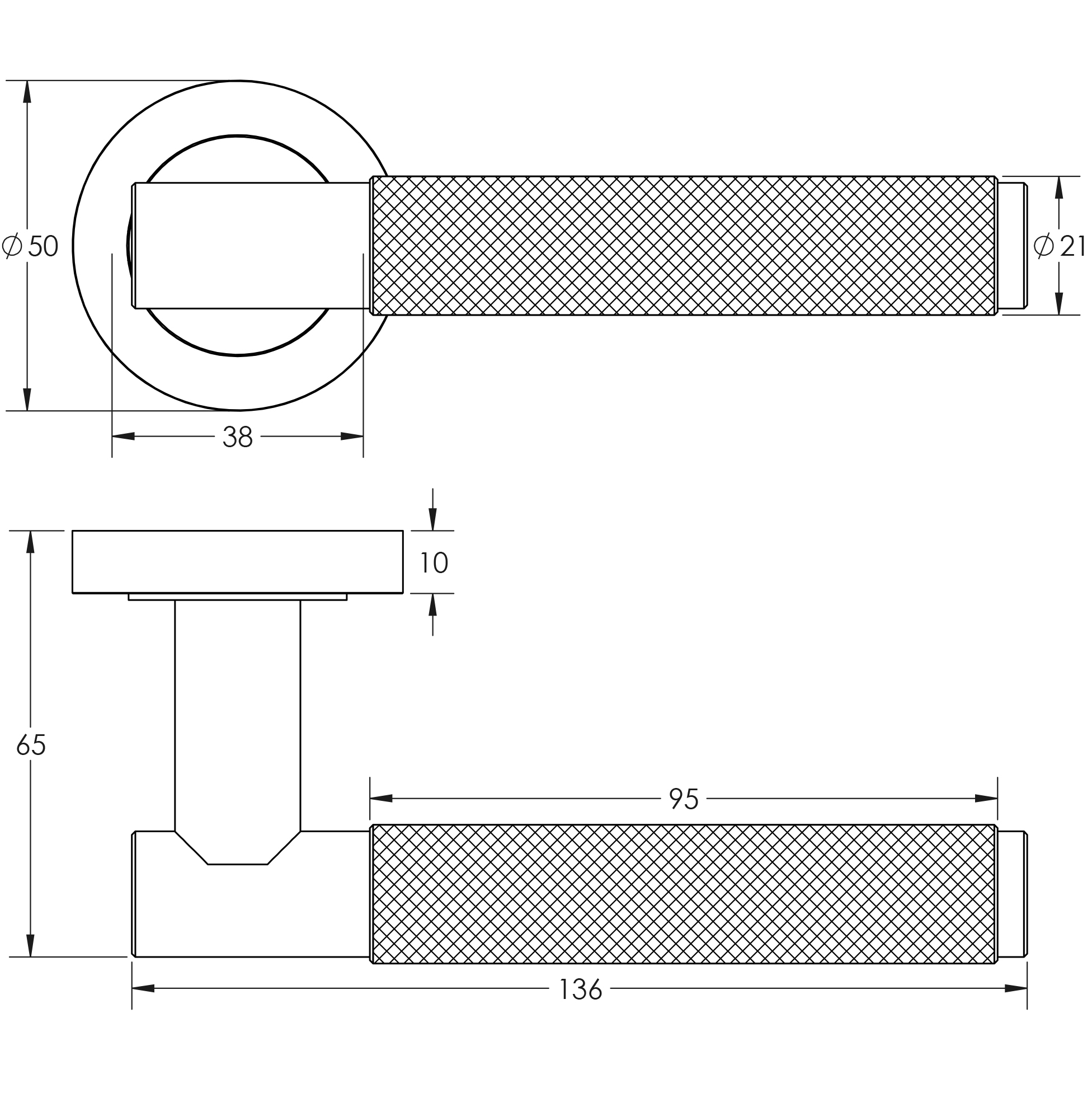

JV850 Technical Drawing

Fire Rating30/60
MaterialAluminum
RangeJedo
Internal/ExternalInternal
Residential/CommericalResidential
Fixings IncludedYes
Rose Diameter50mm
Rose Projection10mm
Overall Projection65mm
Handle Length136mm
SprungYes
Avaliable Finishes6
Grip Length95mm
Projection44mm
Rose Centres38mm
Bar Diameter21mm

Click on any of the following links to download the file.
