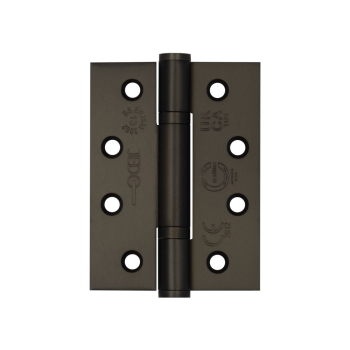

Certifire Stainless Steel Grade 13 Polymer Bearing Hinge 3 Knuckle Dark Bronze
The J9603DB Certifire Stainless Steel Grade 13 Polymer Bearing Hinge in Dark Bronze combines strength and style. Tested to 200,000 cycles and equipped with Grade 4 corrosion resistance, this hinge is designed for doors up to 120kg, making it perfect for both residential and commercial use.
KEY FEATURES
- Material: Stainless Steel
- Finish: Dark Bronze
- Design: 3 Knuckle with polymer bearings for smooth operation
- Size: 102mm x 76mm x 3mm
- Fixings Included: Yes
- Standards: BS EN 1935:2002
- Fire Resistance: FD30/60 & Certifire Approved
- Certifications: UKCA 1121 and CE 2812
- Corrosion Resistance: Grade 4
- Application: Suitable for doors up to 120kg in residential and commercial settings
STANDARDS & CERTIFICATIONS
UKCA Certification | CE Certification | Grade 13 Certificate | Fire Door 30/60 Certification | Certifire Certificate
Note: To maintain compliance with fire standards, it is recommended to fit these hinges with the relevant intumescent pack (GRA 1 & GRA 1.2). We recommend requesting a sample before installation to ensure compatibility and satisfaction.
| Material | Stainless Steel |
|---|---|
| Carrying Weight | Up to 120kg with 3 hinges |
| Range | Jedo |
| Material Grade | 201g Stainless Steel |
| Internal/External | Internal |
| Residential/Commerical | Residential/Commerical |
| Overall Size | 102 x 76mm |
| PVD Finish | No |
| Finish | Dark Bronze |
| Fire Rating | FD30/60 |
| CE / UKCA | BS EN 1935 |
| Certifire | Yes |
