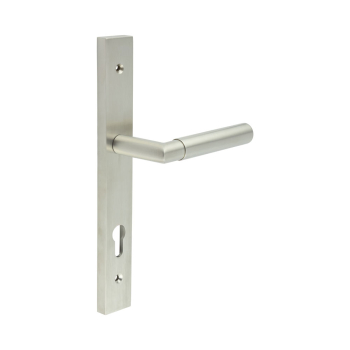

CR-102 Satin Stainless Steel Multi Point Backplate Door Handle
The CR-102 Lever is a luxury door handle manufactured from solid 316g stainless steel with a highly durable finish. Designed for high-end residential and commercial environments, it features a crisp cylindrical design with a clean mitred joint, offering a sharp, architectural aesthetic. The robust, weighty construction delivers a premium feel in hand and outstanding long-term performance. Sold in pairs and available in five elegant finishes, the CR-102 is the perfect choice for contemporary interiors that demand precision and style.
KEY FEATURES
Material: 316g Stainless Steel
Inner Rose: Multi Point Spring Cartridge
Finish: Satin Stainless Steel
Outer Rose: Backplate
Suitable Door Thickness: 35 – 44mm
Corrosion Resistance: Rated Grade 4
Additional Hardware: Full suite of matching components available, finished to the same high standard for residential and commercial use
Care Instructions: Clean using warm soapy water and a soft cloth only; avoid harsh chemicals
Fittings Included: Supplied with all fixings – 2x 304 M6 x 7mm security grub screws (matching finish), 1x Allen key, 1x 8 x 110mm split spindle
Use: Suitable for internal and external use across both residential and commercial settings
Mechanical Warranty: 25 years
STANDARDS & CERTIFICATIONS
| Overall Projection | 82mm |
|---|---|
| Outer Rose | Backplate |
| Inner Rose | Multi Point Spring Cartridge |
| Mechanical Warranty | 25 Years |
| Backplate Projection | 13mm |
| Backplate Dimension | 280mmx36mmx13mm |
| Bar Diameter | 20mm |
| Projection | 60mm |
| Avaliable Finishes | 5 |
| Sprung | Multi Point Spring Cartridge |
| Rose Projection | 13mm |
| PVD Finish | No |
| Overall Size | 135x22x69mm |
| Residential/Commerical | Residential/Commerical |
| Internal/External | Internal/External |
| Material Grade | 316g Stainless Steel |
| Range | CRES |
| Material | Stainless Steel |
| Finish | Satin Stainless Steel |
| Certifire | N/A |
| Corrosion Grade | Grade 4 |
| CE / UKCA | N/A |
| Fire Rating | N/A |
